GuangHuiy 10PCS CA9 Trimmer Potentiometer PT10-1K Horizontal Adjustable Vertical Side of The Elliptic Hole

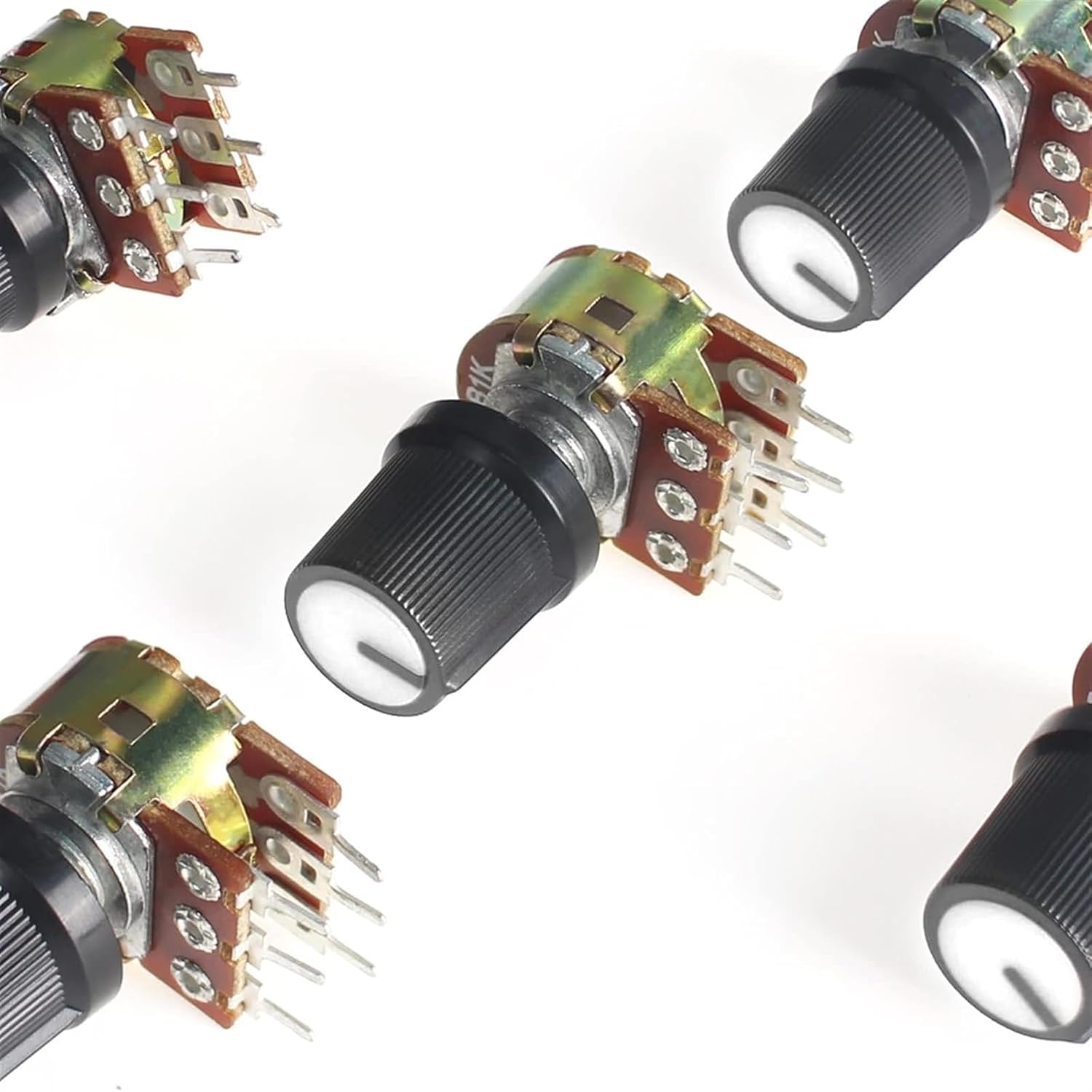

Potentiometers5Set WH148 Linear Potentiometers 15mm 6pin 1K 2K 5K 10K 20K 50K 100K 250K 1M with white AG3 Knob Cap Potentiometer KitName: WH148 PotentiometerProduct introduction:1. Potentiometer is an adjustable electronic component. It consists of a resistance body and a rotating or sliding system. By manually adjusting the shaft or sliding handle, change the moving contact in the resistance body. The position of, then changes the resistance value between the moving contact and any fixed end, thus changing the size of the voltage and current.2 double potentiometer is a kind of two sets of resistance substrate made of adjustment potentiometer, such as double channel sound, if you use two ordinary potentiometer to adjust the volume that is a very troublesome thing, with double potentiometer adjustment usher is very convenient. Multi-link potentiometer is also a kind of adjustment potentiometer, can do adult circuit number potentiometer, in audio, electronic equipment has many applications, realize adjustment.Parameters:1. Rotation Angle: 300°± 10°2. Rotating : 10~ 200gf.com3. Stop : 6.0kgf.cn Min4. Axial push-pull : 8.0kgf,cm5. Registration points: Center, 7/11/21/41 Detent6. Electrical of point position: 50~ 150gf.cm7. Resistance range: 10k~1M8. Resistance tolerance: ±20% (more than 1M±30%)9. Load power: Curve B: 0.05W, other yhan B: 0.025W10. Use voltage: Curve B:50VDC other than B:25V AV11. Residual short rent: R25K 0.1%max, of total tesistance12.250K>R> 10K 20max 20 K R 10K max13. Insulation resistance: More than 100M at DC 250V 1minute14. Withstand voltage: 1 minute AC 250V<;;±3dB16. Rotating noise: less than 100mV17. Rotation life: 10,000 cyclesPackage List:5Set WH148 Potentiometer wiht AG3 knob capProduct application:Widely used in electrical equipment, audio equipment, communications, medical facilities
