H802RA 4-Port 4096 Pixel Artnet Ethernet to SPI Pixel Controller AC 110V-220V Supports MADRIX Jinx Suitable for WS2811 WS2812 LED Lights(Size:US)

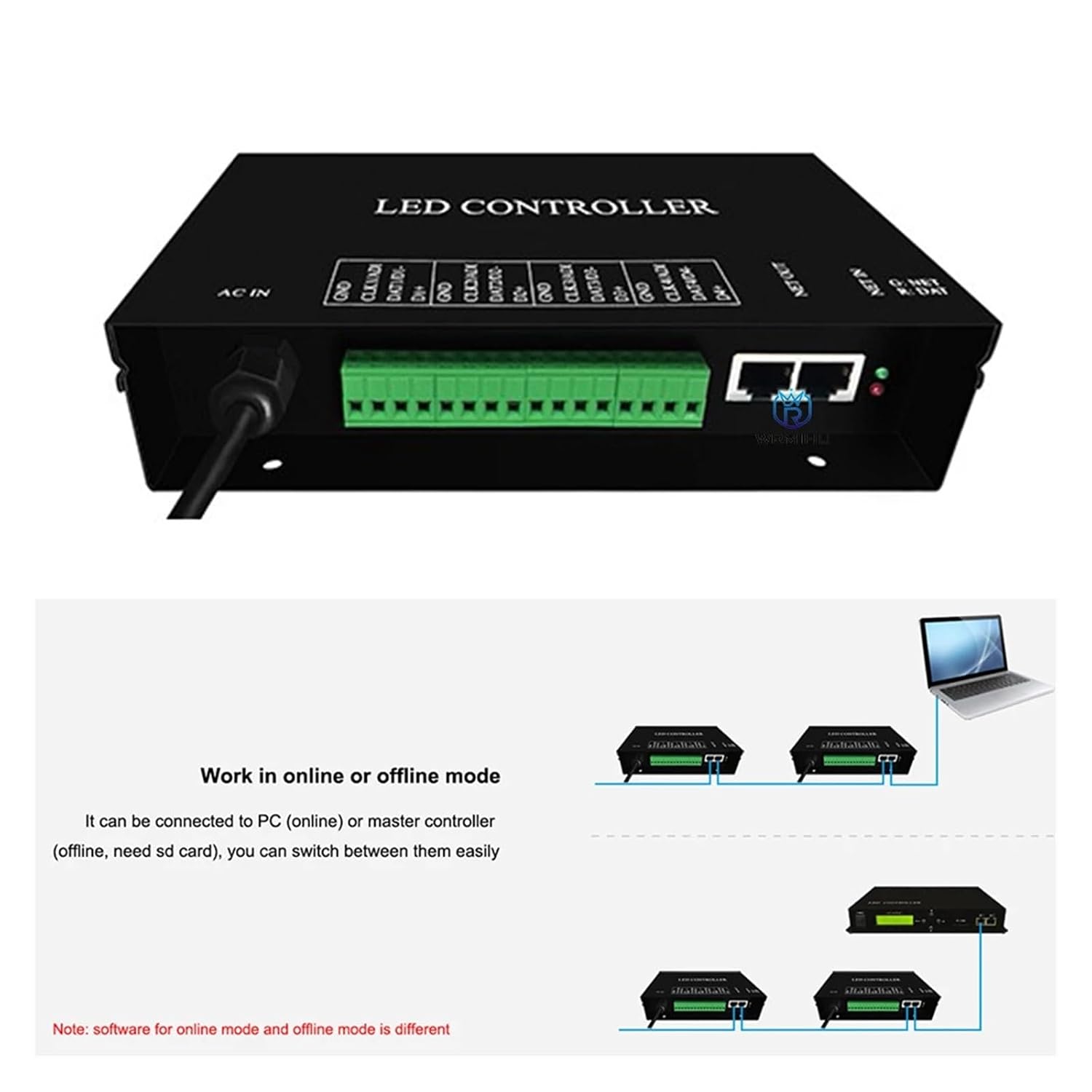

DimmersPerformance characteristics1. 4 output ports, controlling a maximum of 4096 pixels. The maximum number of control points per port is 1024.2. Supports Art Net protocol and can be used with MADRIX software.3. It can address the DMA chips of Tianwei and Lianxinke.4. It can be set as a repeater or amplifier using "LED broadcast software".5. It can be connected or disconnected, and can be directly connected to the computer network card, or connected to the offline or online main controller.6. Flexible use, interchangeable sub-controls, and strong adaptability to lighting projects.7. Long transmission distance, the transmission signal adopts standard Ethernet protocol, and the nominal distance is 100 meters. The sub-control can be used as a relay, and the direct transmission distance through the photoelectric conversion module can reach more than 25 kilometers.Indicator statusGreen indicator light flashes: There is data input to the network portRed indicator light flashes: There is data output on the four portsThe red light does not light up: no powerPort definitionWiring definition of each port (from top to bottom): GND, CLK, DAT, D-, D+Two-wire driver chip connection: GND CLK DATDMX512 light connection: GND DD - D+, if single-line addressing is required, the addressing line is connected to CLKSingle line driver chip connected to GND DATSpecial TM1926, TM1913, TM1914, TM1814 connection: GND D+

• Dimmers
• Material: paper
• Color: H802RA
